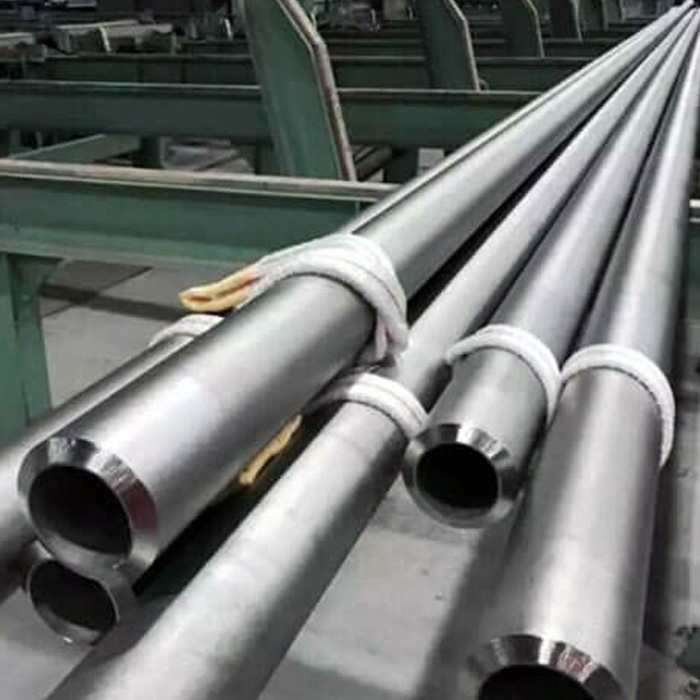

Monel Pipe

What is Monel Pipe?

Monel Pipe is an alloy made from a combination of nickel and copper. It is known for its superior strength and resistance to corrosion, allowing it to be used in industries such as oil and gas, maritime applications, pharmaceuticals, heat exchange equipment, and power generation systems. Monel also offers excellent fatigue properties and high tensile strength - making it ideal for piping in extreme environments or conditions. Monel pipe's reliability, power, and durability make it the preferred choice of piping for many industrial applications.

Features of Monel Pipe

Monel Pipe is lauded for its superior strength and corrosion resistance. Its durability makes it an excellent choice for installations near salt water or other chemically-aggressive environments. Monel offers extreme flexibility when connecting pieces, with lap welding options and traditional threaded connections. Fabrication is also easier with Monel pipes due to their formability and ease of weldability, which makes them popular among industrial and infrastructure applications where reliability is a priority. Monel pipes are widely used in marine engines, boilers, condensers, heat exchangers, fuel lines, and as linings for tanks storing corrosive chemicals such as hydrochloric acid. Whether you need a highly durable or economical solution, Monel pipe can offer you the correct answer.

Applications of Monel Pipe & Tube

Monel pipes and tubes are used in environments where regular steel or even Stainless Steel tends to fail. The material holds up well under acidic, alkaline, and saline conditions, which is why it gets specified in demanding process industries.

Marine and offshore engineering is probably the most common application. Seawater handling systems, including desalination plants, rely heavily on Monel because of how the material behaves in chloride-rich conditions. Oil and gas processing facilities use it for flow lines and process tubing where aggressive media is involved.

Monel tubes are used in chemical and petrochemical plants for reactors, heat exchangers and condensers. They are also used by power generation plants in condenser systems. Aerospace and defense industries favor Monel because it combines strength and corrosion resistance.

Pharmaceutical processing equipment, pulp and paper industries, and hydraulic and instrumentation systems are other areas where Monel is regularly specified. In instrumentation lines, the material's resistance to stress corrosion cracking matters a lot.

Different Grades of Monel Pipe

Two grades cover most industrial requirements: Monel 400 and Monel K500.

Monel 400 (UNS N04400) is a nickel-copper alloy. Monel will not corrode significantly in seawater, hydrofluoric acid and many alkalis. Typical applications are marine components, chemical processing equipment and heat exchangers. It works across a broad temperature range and is easy to fabricate.

Monel K500 (UNS N05500) has the same base composition as Monel 400 but with aluminium and titanium added. These additions allow age-hardening, which pushes the tensile strength considerably higher. Pump shafts, valve stems, and fasteners in offshore and marine environments are common applications.

The practical difference is that if the job needs corrosion resistance and standard strength, Monel 400 is sufficient. If the part carries mechanical load in a corrosive environment, K500 is the right pick. Temperature and pressure conditions do affect the choice, so it is worth checking with your application engineer before finalising the grade.

Types of Monel Pipes & Tubes

Monel is available in several product forms depending on what the application requires.

• Seamless Pipes are made without a weld seam, so the wall is uniform throughout. These are preferred in high-pressure and high-temperature service.
• Welded Pipes are produced from strip and seam welded. They are good for low pressure applications and more economical for larger diameters.
• ERW Pipes (Electric Resistance Welded) are used where dimensional consistency matters and pressures are moderate.
• EFW Pipes (Electric Fusion Welded) are used for heavier wall requirements, especially in larger sizes.
• Round Tubes are the standard form for most process and instrumentation applications.
• Square and Rectangular Tubes are used in structural and fabrication work where round sections are not practical.
• Heat Exchanger Tubes need to be precisely dimensioned with consistent wall thickness. Monel tubes in this category are used in shell-and-tube exchangers handling corrosive fluids.
• Condenser Tubes see similar requirements, particularly in power and desalination plants.
• Hydraulic Tubes are used in hydraulic lines and instrumentation systems where the tubing needs to handle both pressure and chemical exposure.

Monel Alloy Pipe Price, ASTM B725 Monel Alloy Tubes, Monel Welded Pipe, Monel Alloy Tubing, Monel EFW Pipe, Monel Tube Suppliers, Alloy ERW Pipe, Monel Alloy Square Pipe, ASTM B725 Pipes, Monel Seamless Pipe, Monel Alloy Pipe Price, Monel Alloy Pipe Manufacturers in India.

Monel Pipe Specifications
